Fast DC EV Charger
End-to-End Solution

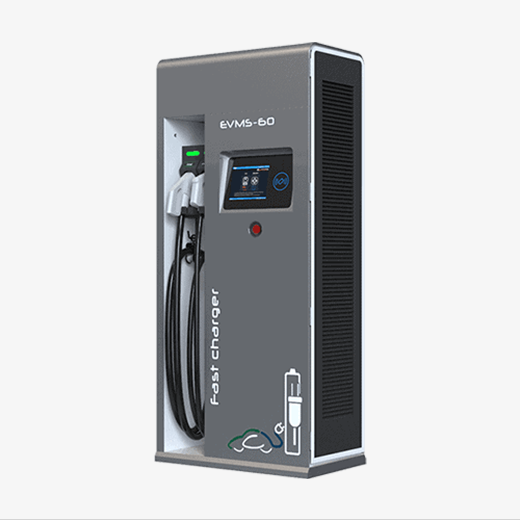

The EVMS-60 is a ccs ev charging station able to charge all current and next generation vehicles with 50/60kW CCS, CHAdeMO and AC Type 2.
EVMS-150, a ccs rapid charger for E-Bus and Luxury EVs. It’s a dc rapid charger to charge any CCS Compatible Bus or Vehicles with 150kW.
Application: highway rest stops, petrol stations, EV dealers, busy urban areas, etc. Compatible car brands: BMW, Volkswagen, GM, Porsche, Audi, Nissan, Mitsubishi, Peugeot, Citroen, Kia, Renault, Daimler, Tesla, Smart, Mercedes
EVMS-150, a ccs rapid charger for E-Bus and Luxury EVs. It’s a dc rapid charger to charge any CCS Compatible Bus or Vehicles with 150kW.
Application: highway rest stops, petrol stations, EV dealers, busy urban areas, etc. Compatible car brands: BMW, Volkswagen, GM, Porsche, Audi, Nissan, Mitsubishi, Peugeot, Citroen, Kia, Renault, Daimler, Tesla, Smart, Mercedes
High efficiency and energy saving
Modular structure, with higher reliability and flexibility;Efficiency ≥ 95%, low energy consumption; Noise is low and has little impact on the surrounding environment;
Flexible configuration
Flexible multi-protocol design of ev charging ccs: CCS 2, CHAdeMO GB/T and AC TYPY 2;Support two guns charge at the same time or in turn;Support customization to meet the diverse needs of different customers;
Intelligent interaction
CCS ev charger supports multi language operation;Daylight readable touch screen display;Support OCPP1.6J
EV DC Fast Charger types
EVMS-60
Configuration: two DC guns charge at the same time or in turn
Capacity: 60KW
Constant power range: 400-1000VDC
Max. charge current: 150A
Size: 900*525*2000(W*D*H)mm (two guns) / 1000*525*2000(W*D*H)mm (three guns)
Capacity: 60KW
Constant power range: 400-1000VDC
Max. charge current: 150A
Size: 900*525*2000(W*D*H)mm (two guns) / 1000*525*2000(W*D*H)mm (three guns)
EVMS-150
Configuration: two DC guns charge at the same time or in turn
Capacity: 150KW
Constant power range: 400-1000VDC
Max. charge current: 375A
Size: 900*525*2000(W*D*H)mm (two guns) / 1000*525*2000(W*D*H)mm (three guns)
Capacity: 150KW
Constant power range: 400-1000VDC
Max. charge current: 375A
Size: 900*525*2000(W*D*H)mm (two guns) / 1000*525*2000(W*D*H)mm (three guns)
Specifications of EV Charging Stations
|
Model/Capacity
|
EVMS-60; 60kW
|
||
|
AC input
|
Rated voltage
|
400VAC
|
|
|
Frequency
|
50/60HZ
|
||
|
PF
|
＞0.99
|
||
|
DC output
|
Voltage range
|
150-1000VDC
|
|
|
AC output
|
Rated voltage
|
/
|
|
|
Nominal power
|
/
|
||
|
Others
|
Efficiency
|
95%
|
|
|
Operation temperature
|
-35ºC-60ºC(-20ºC～-35ºC，need heating)
|
||
|
Relative humidity
|
|||
|
Protection degree
|
IP54，IK10
|
||
|
Noise
|
＜55dB
|
||
|
Compliance and safety
|
CE, EN61851, EN62196, DIN70121, ISO15118
|
||
