Energy Management System (EMS)
End-to-End Solution
IO R is part of Tridium’s portfolio of hardware, software and tools designed for remote monitoring and control applications that enables end-to-end automation and device-to-enterprise integration. IO R allows the JACE® 8000 to interface directly with simple non-intelligent inputs and outputs remotely located up to 4,000 feet from the JACE. The connection is established via an industry-standard RS 485 multi-drop communications bus. Multiple IO R devices can be utilized on a single JACE, providing 250+ IO points on a single JACE.
Specifications
Niagara 4 – Requires Niagara 4.3 or later
Niagara AX – Requires Niagara 3.8u3 or later
Niagara AX – Requires Niagara 3.8u3 or later

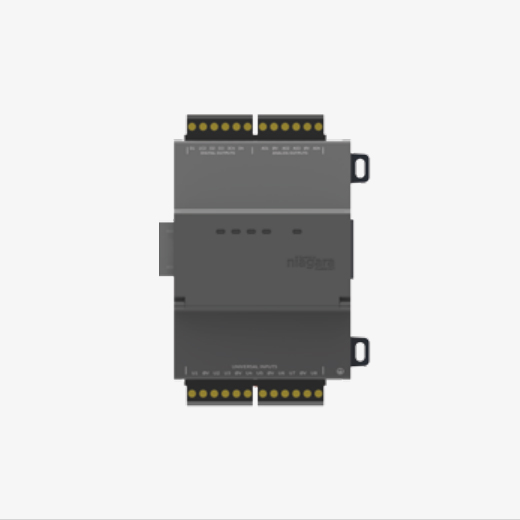

IO-R-16
- 8 Universal inputs: Type 3 (10k) thermistors, 0-100K ohm, 0-10VDC, 0-20 mA with external resistor
- 4 Relay outputs (Form A contacts, 24VAC @ .5 amp rated)
- 4 Analog outputs (0-10VDC)
- Powered from IO-R-34
- Connected to JACE 8000 remotely over a shielded RS485 bus

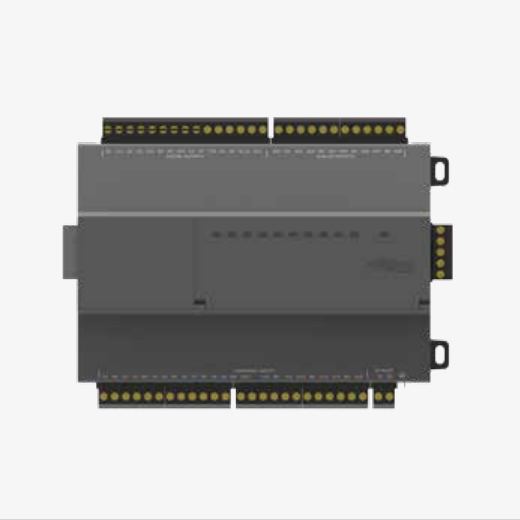

IO-R-34
- 16 Universal inputs: Type 3 (10k) thermistors, 0-100K ohm, 0-10VDC, 0-20 mA with external resistor
- 10 Relay outputs (Form A contacts, 24VAC @ .5 amp rated)
- 8 Analog outputs (0-10VDC) Powered from a 24VAC/DC source
- Can power up to 4 IO-R-16 modules
- Connected to JACE 8000 remotely over a shielded RS485 bus
Expandability
Maximum Expansion

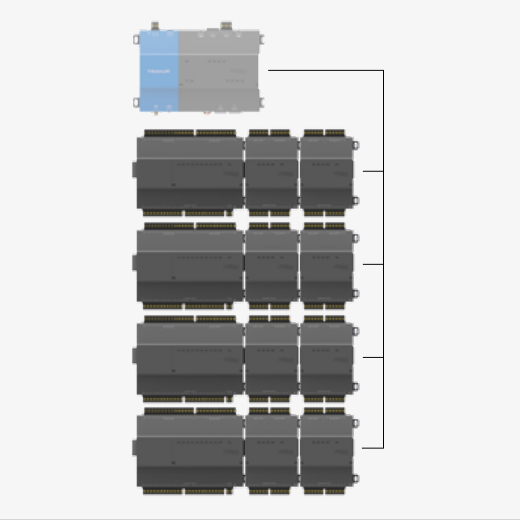

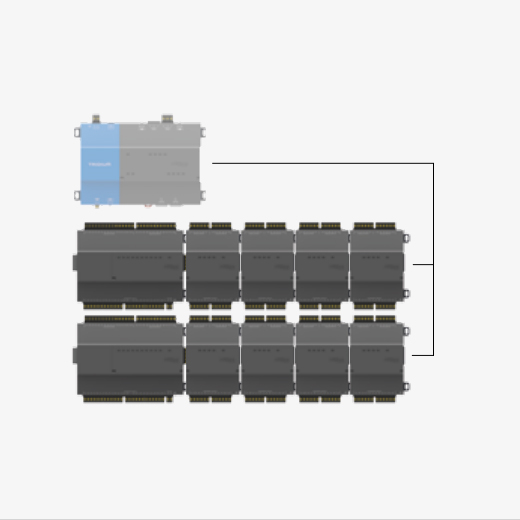

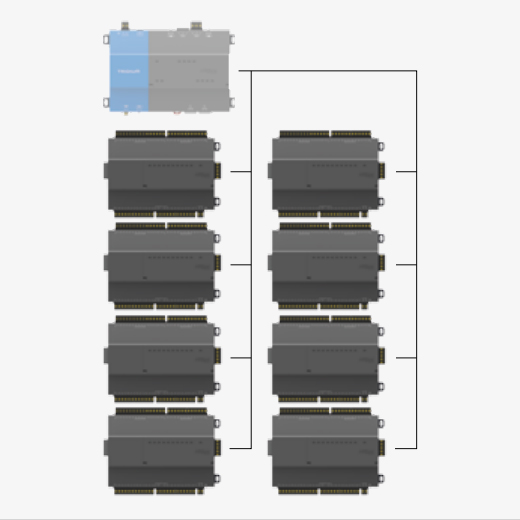

- (8) IO-R-34s OR (16) IO-R-16s
Power
One IO-R-34 can power four IO-R-16 modules
Agency Certifications
- UL 916
- C-UL
- CE EN 61326-1:2013
- RCM
- FCC part 15, class b
- RoHS2
- REACH
- WEEE
- China ROHS
- Open Energy Management Class 2
Environmental Specifications
- Operating temperature: -20–60°C
- Storage temperature: -40–85°C
- Humidity: 5%–95% — Non condensing
- Shipping & vibration: ASTM D4169, Assurance Level II
- MTTF: 10 years+
